The Amflow PL Carbon Pro 800Wh 105Nm Avinox Lightweight Electric Full Suspension Mountain Bike In Cosmic Black X-Large 47cm Cosmic Black is available at the following locations.
The item will be transferred to the location you choose during checkout.
Please note that Click & Collect is not currently available from our Brentwood store.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
The Amflow PL Carbon Pro represents a revolutionary step in electric mountain biking, delivering the ideal fusion of cutting-edge technology and trail-focused performance. Built around DJI's groundbreaking Avinox drive system, this full-suspension e-MTB pushes the boundaries of what's possible when innovative engineering meets serious mountain biking capability.
Compared to the standard version of the PL Carbon, the Pro uses the same electrical system components but offers upgrades to top-tier selections with Fox's premium shock absorption and seatpost, and a higher spec drivetrain.
This e-MTB has breathtaking speed, handling, and agility that you'll absolutely love, because unlike many full-suspension e-bikes the Amflow PL Carbon Pro weighs in at approximately 19kg thanks to its ultra-light carbon fiber frame that weighs just 2.27kg. Compare that to other e-MTB bikes that often weigh up to 25kg or so.
DJI has long been famous for their high quality, advanced airborne drones, and in an exciting and unexpected twist they are now using their expertise in batteries and electric motors to venture into the electric bike industry with the debut of their very powerful Avinox drive system. This very impressive motor weighs 2.52kg and delivers a formidable 105Nm continuous torque, with 850W peak power and 250W nominal power, enabling riders to tackle the steepest and most challenging terrains easily. The drive unit casing is constructed from strong, durable polymer material which effectively suppresses noise..
.jpg)
.jpg)
Smart-Assist Algorithm is one of the best features of the Avinox drive system. It cleverly combines input from multiple sensors to automatically adjust assistance to the riding conditions from one moment to the next. Riders can choose from four power management modes: auto, eco, trail, and turbo. This smart system helps to provide optimal performance and efficiency across various terrains. Additionally, the controller offers a Walk Mode which features Auto Hold to prevent rollback on slopes as well as Hill Start Assist and stationary gear shifting for a smooth experience.
This amazing motor alone is enough to make off-road adventurers add this bike to the top of their wishlist, however, as if that wasn't enough DJI have outdone the competition yet again with probably the most capable battery and charging system you'll find on any e-MTB in the UK. The Avinox battery included features a top end 800Wh capacity to offer you tons of milage for your extended adventures and enjoying hour after hour of addictive fun until you decide to call it a day. When the time comes to top the battery back up and get going again, you'll see just how satisfying and practical the Avinox system is. The inclusion of GaN 3X fast charging technology in the 12A / 508W fast charger means the 800Wh battery can reach 75% charge in just 1.5 hours! This rapid charging ability is a significant advantage for those who seek long-range performance, ensuring minimal downtime and getting you back on the trail as soon as possible.

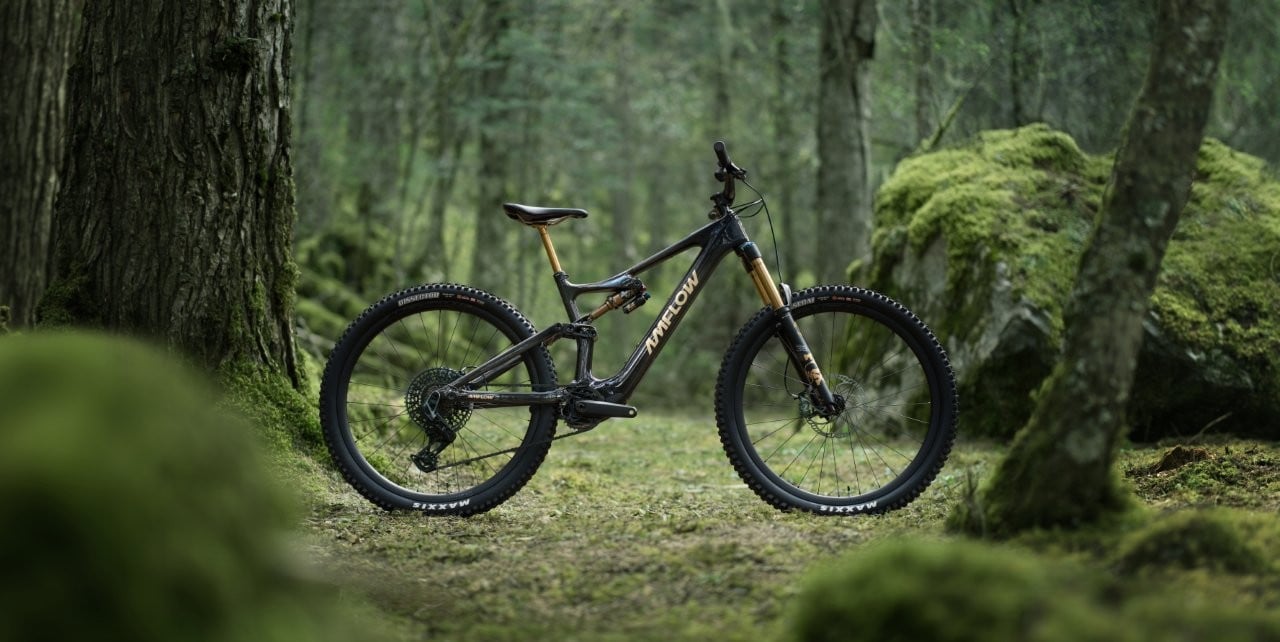

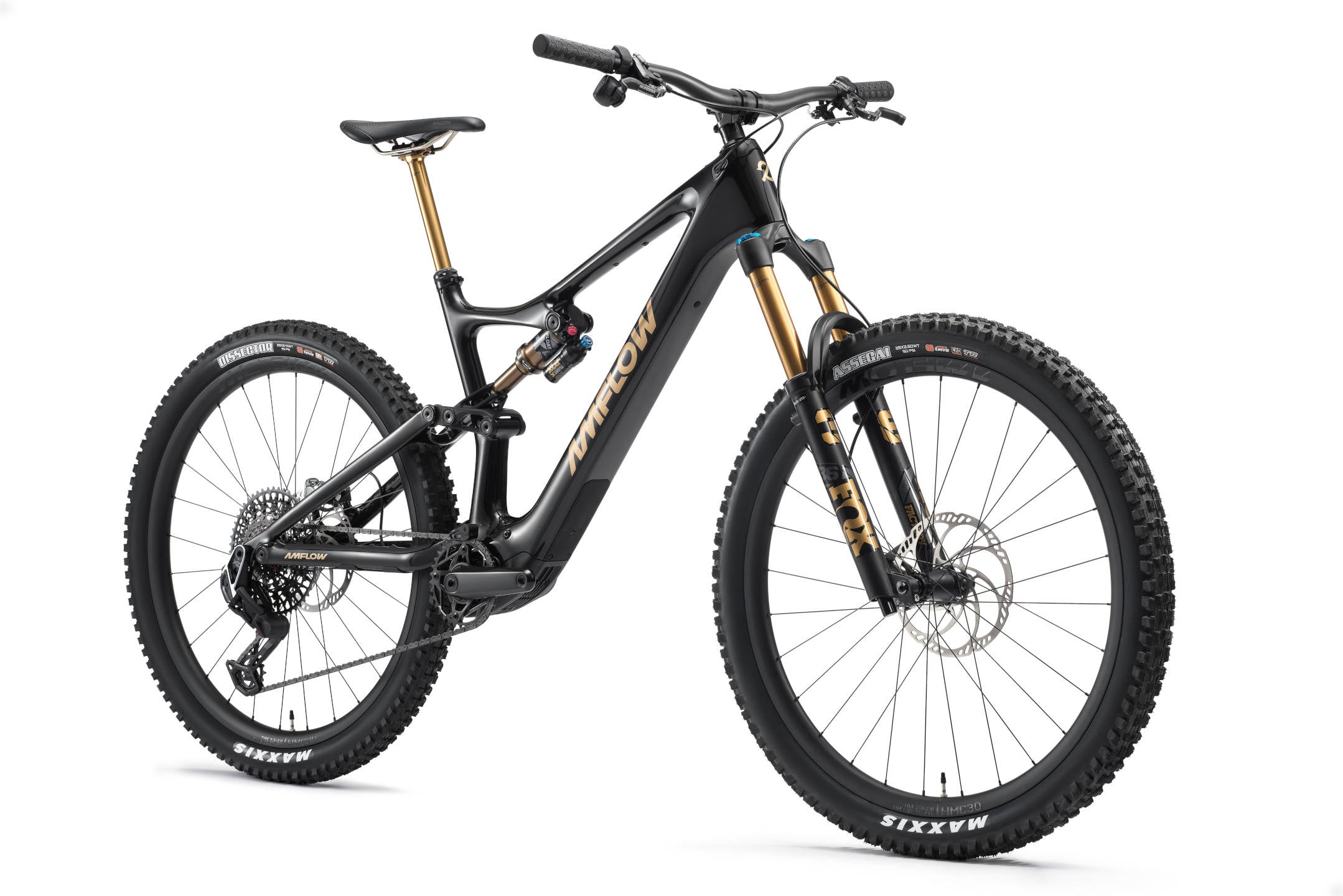

The carbon fibre frame design showcases superb performance-oriented, ultra-light weight construction, featuring 150mm of rear wheel travel through a sophisticated four-bar linkage system. This advanced suspension platform works in harmony with the 2026 Fox 36 Factory fork, which delivers 160mm of travel via its advanced GRIP X2 damper. The co-developed Fox Float X Factory rear shock utilises a custom tune with EVOL air sleeve technology, providing sensitive initial stroke response for filtering trail chatter whilst maintaining powerful end-stroke support during aggressive riding.
Gear shifting is handled by SRAM's X0 Eagle Transmission system, representing the latest evolution in electronic drivetrain technology. The AXS Pod Controller provides instant, precise gear changes across the 10-52T cassette range, whilst the robust chain and derailleur construction ensures reliable performance under the substantial torque loads generated by the Avinox motor. The Avinox SL crank complements the transmission with its optimised chainline and appropriate length options across frame sizes.
Confident control comes courtesy of Magura's MT7 Pro hydraulic disc brake system, featuring four-piston callipers and 203mm Storm HC rotors both front and rear. These powerful brakes deliver the consistent stopping performance essential when managing the speed capabilities of a full-power e-MTB, whilst the HC levers provide ergonomic comfort during extended trail sessions.
The wheels centre around Amflow's own HMC-30 wheelset, built with tubeless-ready carbon rims offering 30mm internal width for optimal tyre support. SAPIM E-Light straight-pull spokes connect to sealed cartridge bearing hubs, with the rear hub featuring a robust 78-tooth connection for reliable power transfer. Maxxis provides the rubber contact points, with an aggressive Assegai 2.5" tyre up front for maximum cornering grip and climbing traction, paired with a Dissector 2.4" rear tyre that balances rolling efficiency with controlled braking performance. Both tyres feature the proven 3C MaxxTerra compound and are rated for e-bike use.
The finishing touches demonstrate thoughtful attention to rider interface and control. The Fox Transfer Factory dropper seatpost offers size-specific travel lengths, ensuring optimal saddle height adjustment across the frame size range. Amflow's own enduro-focused carbon handlebar provides 800mm width with carefully considered rise and sweep angles, along with a matching stem of 35mm length. The integrated 2 inch full-colour OLED touchscreen display keeps essential real-time ride data and range at your fingertips, complemented by the innovative wireless controllers positioned on both sides of the handlebar. Paired with the Avinox smartphone app, it offers remote locating features.

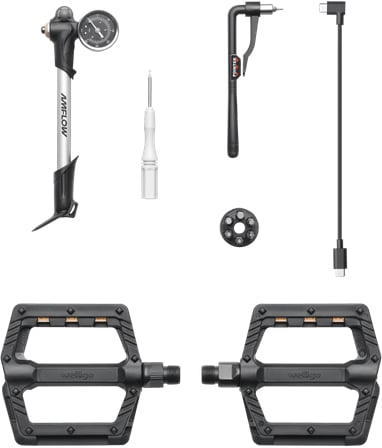

This e-MTB arrives ready for serious trail adventures, complete with an accessory kit that includes front and rear lights, a quick start guide, and also a torque wrench and shock pump to support proper setup and maintenance.
Representing electric mountain biking at its most refined – where advanced technology serves the pure joy of riding challenging terrain with unprecedented capability and control – the Amflow PL Carbon Pro aims to deliver unmatched performance, range, and durability, setting a new standard in the e-MTB market.
Click & Collect
For Click & Collect orders, for security you must present photo ID plus the payment card used at time of collection. This is also applicable when you have purchased using V12 Finance. For more information click HERE
Parts & Accessories
Place an order for £50 or more and delivery is free to mainland UK (including Highlands), for an order under £50 delivery is charged at £8.99.
For Highlands, Northern Ireland, Isle Or Man and other non mainland locations additional charges will apply. For parts and accessories we aim to despatch the next working day after the order is placed.
For hygiene and safety reasons, helmets cannot be returned or exchanged unless they are faulty. Please ensure you choose the correct size and style before purchasing.
Delivery With Multiple Items On Order
Please note if you order more than one item online your products may arrive in separate shipments. We do aim to send everything together but logistically this is sometimes just not feasible. For more information about delivery timescales please click HERE
Lead Times Electric Bikes
Before despatch, bikes are built, configured and tested by one of our experienced technical team.
We aim to despatch an in-stock bike 1-4 days after an order is placed (not including weekends / bank & public holidays). For bike located in a warehouse location we aim to dispatch within 8-10 days (not including weekends / bank & public holidays).
Please note the dispatch timescale shown in on our website / basket / order confirmation are estimated. If applicable Saturdays are included in the calculation however items are normally only dispatched Monday to Friday.
Bikes will be delivered by DX or TNT, please for some models the front wheel will be packed in a separate box but both wheel and bike should be delivered at the same time.
On all boxed deliveries the product name on the box may not match the model inside (our team sometimes have to use a different box than the one that initially came from the manufacturer) so please open the box to check!
Please note that Cube Stereo models are not supplied with pedals, browse our range HERE
Boxed Bike Delivery
Boxed delivery requires basic assembly of your bike when it arrives. Generally the front wheel will need to be reattached, the bars will need to be turned plus pedals fitted.
Watch our video to show how to assemble your bike from the box HERE
FREE boxed bike delivery Our Free Boxed Delivery for bikes / baskets £999 and above is FREE to UK mainland locations (excluding Highlands where there is an additional surcharge payable).
For bikes under £999 we charge £49.99 for boxed delivery to to UK mainland locations (excluding Highlands where there is an additional surcharge payable).
We can also deliver a bike to BT Northern Ireland and IM Isle Of Man subject to surcharges plus Orkney and Shetland Islands, please refer to the map below for our current prices, for other non mainland locations please contact us for a quote.
Ready2Ride Delivery
Choose our Ready2Ride Service and one of our team will deliver your new bike, fully built, configured and tested, we will personally hand over your new bike, make adjustments if required and can also wait while you take a short test ride round the block. If your postcode qualifies for this service it will be available to select at checkout. If your delivery address is outside our delivery area please contact our Customer Services team on 0117 452 6571
Ready2Ride Delivery For Cargo Bikes
From mid July 2024 we are now able to deliver a cargo bike in a box for FREE (to our regular FREE delivery areas - not Highlands etc)
Previously as our cargo bikes are larger than standard electric bikes they were only available for home delivery via our Ready2Ride delivery option (or click and collect), you can still select this option however if you prefer. One of our team will deliver your new bike, fully built, configured and tested, we will personally hand over your new bike, make adjustments if required and can also wait while you take a short test ride round the block.
This premium delivery is available to locations within a 50-75 miles radius of one of our stores. If your postcode qualifies for this service it will be available to select at checkout. If your delivery address is outside our delivery area please contact our Customer Services team on 0117 452 6571
We accept vouchers from Cyclescheme, Cycle2Work (also known as Halfords Cycle2Work), Bike2Work, Cycle Solutions, Caboodle, Dash, Green Commute Initiative, Gogeta, My Benefits World & Vivup.
Find out more on our Cycle to Work page HERE
If you need a quote, you can save your basket as a quote at the checkout, or get in touch by phone, email or via our Live Chat and one of our team will send you a quote by email.
CycleScheme vouchers can be used when purchasing online, select ‘payment’ option in checkout and provide your voucher number and redemption code. Our team will then be in contact and will process your voucher.
To purchase a bike via Cycle2Work, Bike2Work, Cycle Solutions, Caboodle, Dash Rides, Green Commute Initiative, Gogeta, My Benefits World & Vivup please contact our Customer Services Team on 0117 452 6571 and we will process your order manually.
Service Plans are available on all bikes purchased in store and online within 60 days of purchase and a great way to save money on future services.
Your Service Plan is non-refundable, non-transferable and is registered to you and your bike (frame number required)
To ensure that we never let our you down, we proactively monitor competitor prices and adjust our own prices every week.
However, if you do find a product online for less than the price offered on our website or in store, please get in touch and we may be able to match it, as long as it matches the criteria below.
If you want to request a price match from us, simply contact our customer service team on 0117 452 6571 or contact us via our live chat.
| E-Bike System | |
| Motor | Avinox M1 drive unit, 15.5mph, 105Nm torque |
| Display / Controller | Avinox 2-inch OLED touchscreen display, Avinox wireless controllers (right and left sides) |
| Battery | Avinox integrated battery 800Wh |
| Charger | Avinox fast charger 12A / 508W |
| Frame | |
| Frame | Amflow PL Carbon frame, Cosmic Black, compatible with 27.5" and 29" rear wheels |
| Fork | 2026 Fox 36 Factory, 160mm travel, GRIP X2 damper, 15×110mm, 44mm rake |
| Rear shock | 2026 Fox Float X Factory, 150mm travel, trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever with LSC adjustment |
| Drivechain and Brakes | |
| Brakes | Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC rotor (front and rear) |
| Crankset | Avinox SL Crank (155mm on size M/L; 160mm on size XL/XXL) |
| Rear derailleur | SRAM X0 Eagle Transmission Derailleur with power cable |
| Shifters | SRAM AXS Pod Controller |
| Cassette | SRAM XS-1295 Eagle Transmission 10-52T |
| Chain | SRAM X0 Eagle Transmission Flattop Chain |
| Cockpit | |
| Handlebar | Amflow Enduro Carbon Handlebar, 25mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep |
| Grips / Tape | Amflow Enduro Grips |
| Stem | Amflow Enduro Stem, one-piece CNC, 35mm length, 35mm clamping diameter |
| Saddle | Ergon SM PRO M/L |
| Seatpost | Fox Transfer Factory, travel adjustable in 5mm (125-150mm on size M; 155-180mm on size L/XL; 185-210mm on size XXL) |
| Wheels | |
| Wheelset | Amflow HMC-30 |
| Rims | Carbon, 29", 30mm internal width, 28H, tubeless ready |
| Front hub | Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt |
| Rear hub | Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T |
| Front tyre | Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR |
| Rear tyre | Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR |
| Spokes | SAPIM E-Light straight-pull |
| Accessories | |
| Front light | Included |
| Rear light | Included |
| Included accessories | Quick start guide, torque wrench (3~25Nm, Hex 2/3/4/5/6mm, Torx 25), and shock pump |
| Colours | Cosmic Black |
| Sizes | Large 45cm, Medium 43cm, X-Large 47cm |
| Brand | Amflow |
| Model Year | 2025 |
| Barcodes | EAN: 6937224119567, EAN: 6937224119659, EAN: 6937224119666, EAN: 6937224119802 |
| SKUs / Part Numbers | 190021145047, 190021145139, 190021145146, 190021145283 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
