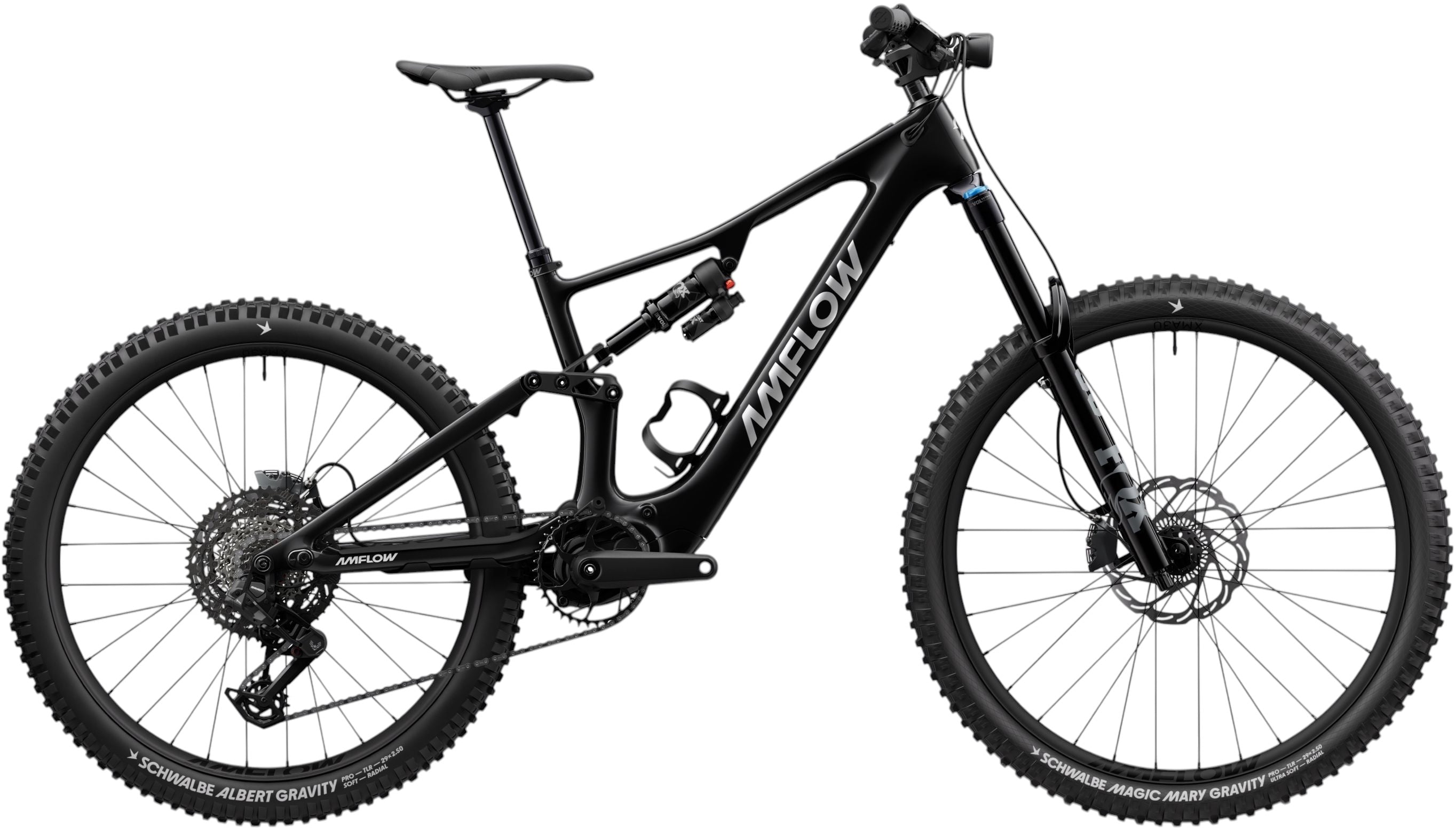

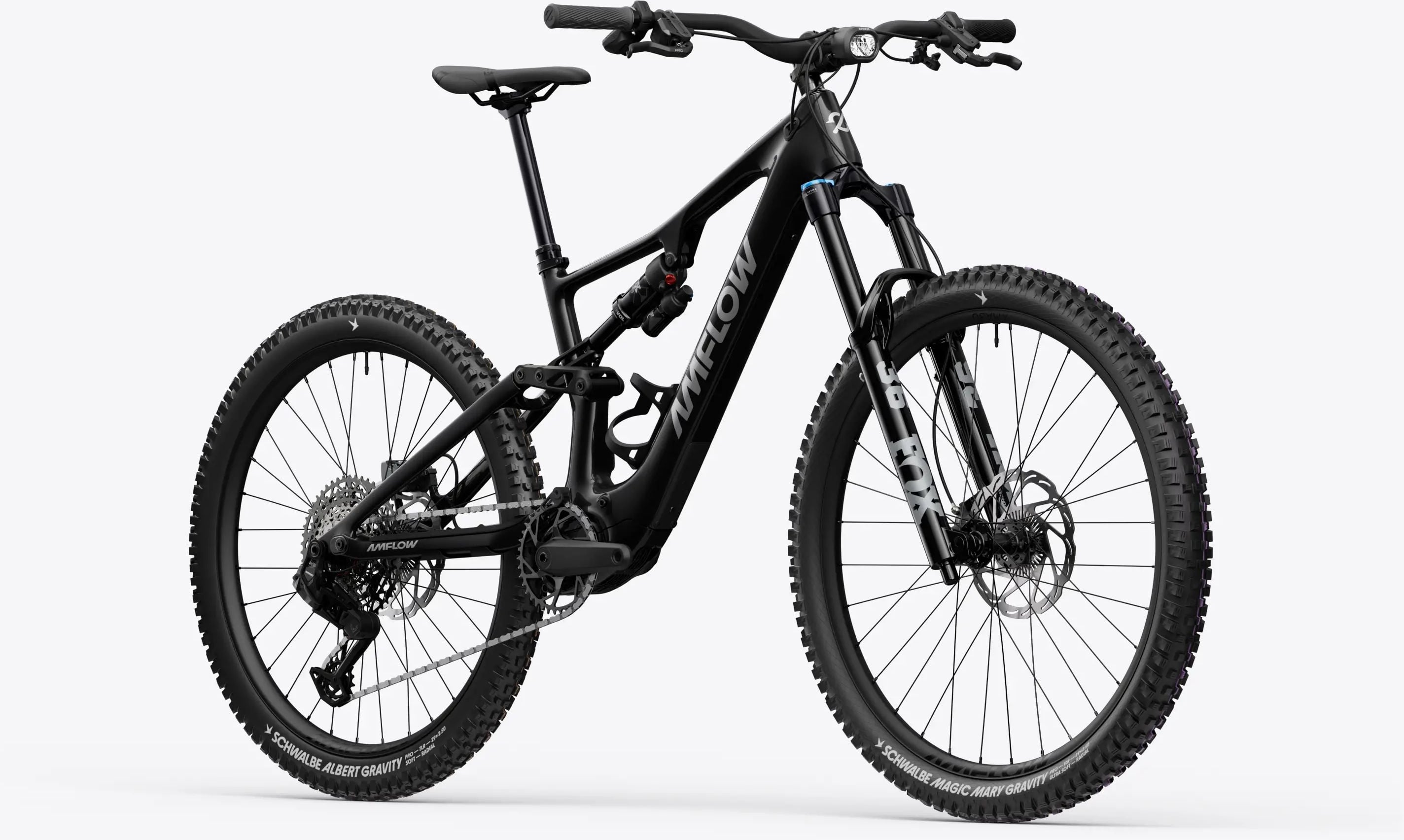

The 2027 Amflow PX Carbon 700Wh New Avinox M2S 150Nm Lightweight Electric Full Suspension Mountain Bike In Phantom Black Medium Phantom Black is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
Slim and light, yet remarkably powerful. An ultra-light carbon fiber frame brings the bike down to 20.6kg* for confident, effortless control.

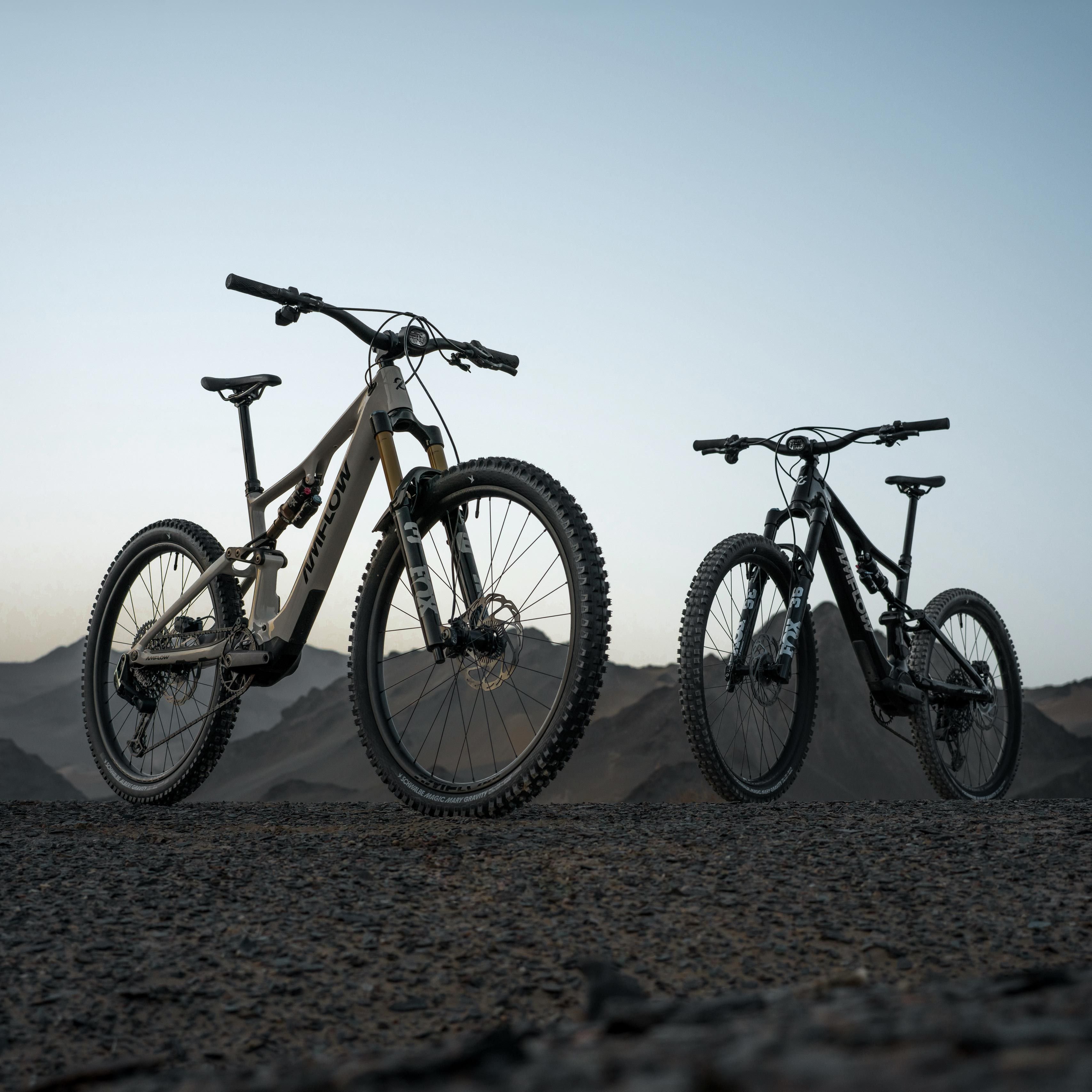

Available in Phantom Black and Moonstone Grey. A futuristic design, brought to life by shifting light and shadow.
Sleek & Agile, Total Control
Featuring a compact, streamlined design with a total weight of approximately 2.4kg, it is lightweight without compromising on a powerful performance.
Versatile Geometry To Conquer Any Terrain Amflow PX features a cutting-edge progressive geometry.
With precision adjustments to the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations. This allows the bike to adapt precisely to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.
Torque Nominal 130Nm / Peak 150Nm, Peak Power 1500W
Power delivery shouldn't feel abrupt. The Avinox M2S Drive Unit utilizes multiple high-precision sensors and intelligent algorithms to adjust output in real-time, delivering a natural, linear pedaling feel. The Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 150Nm of torque and 1500W high-power assistance (in 60 second bursts).
Whisper-Quiet, Immersive Riding
Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2S Drive Unit to as low as 45dBA. On descents, rattling is kept to a minimum, so the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.
Compact, More Capable
While weighing just 2.59kg, the Avinox M2S Drive Unit has achieved a qualitative leap in performance. Compared to the previous generation, power density has increased by 45.9% and torque density by 21.6%.
Charge Fast, Ride Free
A 700Wh high-capacity battery paired with 3x super-fast charging supports not only all-day epic rides but also allows you to quickly recharge during breaks, eliminating range anxiety.
Smart Offline Navigation
The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronization and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.
Smart Companion
Amflow PX seamlessly integrates cutting-edge smart technology into your daily ride, delivering effortless convenience on every journey.
Suspension
Deeply customized in collaboration with world-class brand FOX, it achieves a deft balance between sensitive bump absorption and solid support through exclusive damper tuning and optimized suspension kinematics.
Brakes
Featuring the Magura Gustav Pro Hydraulic Disc Brakes and massive 203mm rotors, it delivers instant braking response in all conditions.
Tyres & Wheels
Designed with a mixed-wheel setup with a 29-inch front wheel and a 27.5-inch rear wheel (mullet) and equipped with Schwalbe Radial tires for more solid and reliable traction.
*Actual product weight may vary due to personalized configurations (e.g., lights, pedals), size, manufacturing batch differences, and external factors. Other figures stated were recorded during testing, in real life situations these may vary slightly due to external factors.
Click & Collect
For Click & Collect orders, for security you must present photo ID plus the payment card used at time of collection. This is also applicable when you have purchased using V12 Finance. For more information click HERE
Parts & Accessories
Place an order for £50 or more and delivery is free to mainland UK (including Highlands), for an order under £50 delivery is charged at £8.99.
For Highlands, Northern Ireland, Isle Or Man and other non mainland locations additional charges will apply. For parts and accessories we aim to despatch the next working day after the order is placed.
For hygiene and safety reasons, helmets cannot be returned or exchanged unless they are faulty. Please ensure you choose the correct size and style before purchasing.
Delivery With Multiple Items On Order
Please note if you order more than one item online your products may arrive in separate shipments. We do aim to send everything together but logistically this is sometimes just not feasible. For more information about delivery timescales please click HERE
Lead Times Electric Bikes
Before despatch, bikes are built, configured and tested by one of our experienced technical team.
We aim to despatch an in-stock bike 1-4 days after an order is placed (not including weekends / bank & public holidays). For bike located in a warehouse location we aim to dispatch within 8-10 days (not including weekends / bank & public holidays).
Please note the dispatch timescale shown in on our website / basket / order confirmation are estimated. If applicable Saturdays are included in the calculation however items are normally only dispatched Monday to Friday.
Bikes will be delivered by DX or TNT, please for some models the front wheel will be packed in a separate box but both wheel and bike should be delivered at the same time.
On all boxed deliveries the product name on the box may not match the model inside (our team sometimes have to use a different box than the one that initially came from the manufacturer) so please open the box to check!
Please note that Cube Stereo models are not supplied with pedals, browse our range HERE
Boxed Bike Delivery
Boxed delivery requires basic assembly of your bike when it arrives. Generally the front wheel will need to be reattached, the bars will need to be turned plus pedals fitted.
Watch our video to show how to assemble your bike from the box HERE
FREE boxed bike delivery Our Free Boxed Delivery for bikes / baskets £999 and above is FREE to UK mainland locations (excluding Highlands where there is an additional surcharge payable).
For bikes under £999 we charge £49.99 for boxed delivery to to UK mainland locations (excluding Highlands where there is an additional surcharge payable).
We can also deliver a bike to BT Northern Ireland and IM Isle Of Man subject to surcharges plus Orkney and Shetland Islands, please refer to the map below for our current prices, for other non mainland locations please contact us for a quote.
Ready2Ride Delivery
Choose our Ready2Ride Service and one of our team will deliver your new bike, fully built, configured and tested, we will personally hand over your new bike, make adjustments if required and can also wait while you take a short test ride round the block. If your postcode qualifies for this service it will be available to select at checkout. If your delivery address is outside our delivery area please contact our Customer Services team on 0117 452 6571
Ready2Ride Delivery For Cargo Bikes
From mid July 2024 we are now able to deliver a cargo bike in a box for FREE (to our regular FREE delivery areas - not Highlands etc)
Previously as our cargo bikes are larger than standard electric bikes they were only available for home delivery via our Ready2Ride delivery option (or click and collect), you can still select this option however if you prefer. One of our team will deliver your new bike, fully built, configured and tested, we will personally hand over your new bike, make adjustments if required and can also wait while you take a short test ride round the block.
This premium delivery is available to locations within a 50-75 miles radius of one of our stores. If your postcode qualifies for this service it will be available to select at checkout. If your delivery address is outside our delivery area please contact our Customer Services team on 0117 452 6571
We accept vouchers from Cyclescheme, Cycle2Work (also known as Halfords Cycle2Work), Bike2Work, Cycle Solutions, Caboodle, Dash, Green Commute Initiative, Gogeta, My Benefits World & Vivup.
Find out more on our Cycle to Work page HERE
If you need a quote, you can save your basket as a quote at the checkout, or get in touch by phone, email or via our Live Chat and one of our team will send you a quote by email.
CycleScheme vouchers can be used when purchasing online, select ‘payment’ option in checkout and provide your voucher number and redemption code. Our team will then be in contact and will process your voucher.
To purchase a bike via Cycle2Work, Bike2Work, Cycle Solutions, Caboodle, Dash Rides, Green Commute Initiative, Gogeta, My Benefits World & Vivup please contact our Customer Services Team on 0117 452 6571 and we will process your order manually.
Service Plans are available on all bikes purchased in store and online within 60 days of purchase and a great way to save money on future services.
Your Service Plan is non-refundable, non-transferable and is registered to you and your bike (frame number required)
To ensure that we never let our you down, we proactively monitor competitor prices and adjust our own prices every week.
However, if you do find a product online for less than the price offered on our website or in store, please get in touch and we may be able to match it, as long as it matches the criteria below.
If you want to request a price match from us, simply contact our customer service team on 0117 452 6571 or contact us via our live chat.
Motor: Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Battery: Avinox Integrated Battery: 700Wh
Display: Avinox Screen: 2-inch OLED Control Display
Controllers: Avinox Wireless Controllers: Right and left
sides
Charger: Avinox Fast Charger: 12A/508W
Frame: Amflow PX Carbon Frame Phantom Black 40 adjustable
geometry configurations * Compatible with 27.5″ and 29″ rear wheels
Shock: FOX Float X Performance (MY 2027) 2-position lever,
custom tune, LSR adjustment, 210×55mm, air shock
Fork: FOX 36 Performance (MY 2027) 160mm travel, GRIP
damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for
Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur
Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes: Magura Gustav Pro Hydraulic Disc Brake, 4-piston
calipers Magura Sensor Rotor (203mm, 2.5mm)
Wheels: Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless
ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle,
32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H,
6-bolt, 4 pawls 36T, HG
Front Tyre: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro,
Ultra Soft, tubeless ready
Rear Tyre: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro,
Addix Soft, tubeless ready
Bars: Amflow Enduro Alloy Handlebar 40mm Rise, 800mm Width,
35mm Diameter 5-degree upsweep, 9-degree backsweep
Grips: Amflow Enduro Grip 2 Lock-on Grips
Stem: Amflow Mountain Bike Split Stem Length: 35mm Clamping
Diameter: 35mm
Saddle: Amflow Mountain Saddle
Dropper Post: Amflow Dropper Post Shim (adjustable travel:
0/5/10/15/20/25mm)
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups,
Chainstay Flip-Chip)
5/10mm Dropper Post Travel Reducing Spacer
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
Quick Start Guide
| Colours | Phantom Black |
| Sizes | Large, Medium, X-Large, XX-Large |
| Brand | Amflow |
| Model Year | 2027 |
| Barcodes | 6937224140813, 6937224140844, 6937224140875, 6937224140950 |
| SKUs / Part Numbers | AMFLOWPXTEMPSKUL, AMFLOWPXTEMPSKUM, AMFLOWPXTEMPSKUXL, AMFLOWPXTEMPSKUXXL |
