The 2025 Trek Marlin+ 6 Electric Hardtail Mountain Bike In Crimson Medium Crimson is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
Redefine your off-road adventures with the Marlin+ 6 electric mountain bike by Trek. Equipped with the confidence-boosting geometry of the Marlin, it comes supercharged by Bosch's Active Line Plus drive system for added trail-blazing power. Coasting over adverse terrains is effortless, thanks to a 120mm suspension fork which soaks up tough trails, while hard-wearing 9-speed Shimano CUES elevate reliability irrespective of terrain.
If you're seeking a power boost on your trail rides without breaking the bank, the Marlin+ 6 is the ultimate choice. Adore the Marlin's adaptability from trail to town and long for a model that boosts your speed or power for longer rides. Look no further.
Key features include the Alpha Platinum Aluminium frame with true mountain bike geometry and 120 mm coil-sprung fork, the reliable Bosch Active Line Plus drive system capable of up to 25 km/h with a minimalistic Purion 200 built-in display. Dependable hydraulic disc brakes add more control to the ride, while a 9-speed Shimano CUES drivetrain ensures sustainable performance.
Dive into the electric mountain bike world with the Marlin+ 6. The trail-friendly frame provides confident control while the Bosch Active Line Plus motor takes the strain out of tiring climbs.
Experience seamless, silently powerful rides. The Bosch Active Line Plus mid-power motor delivers a smooth 50 Nm of torque accompanied with easy acceleration and low pedal resistance.

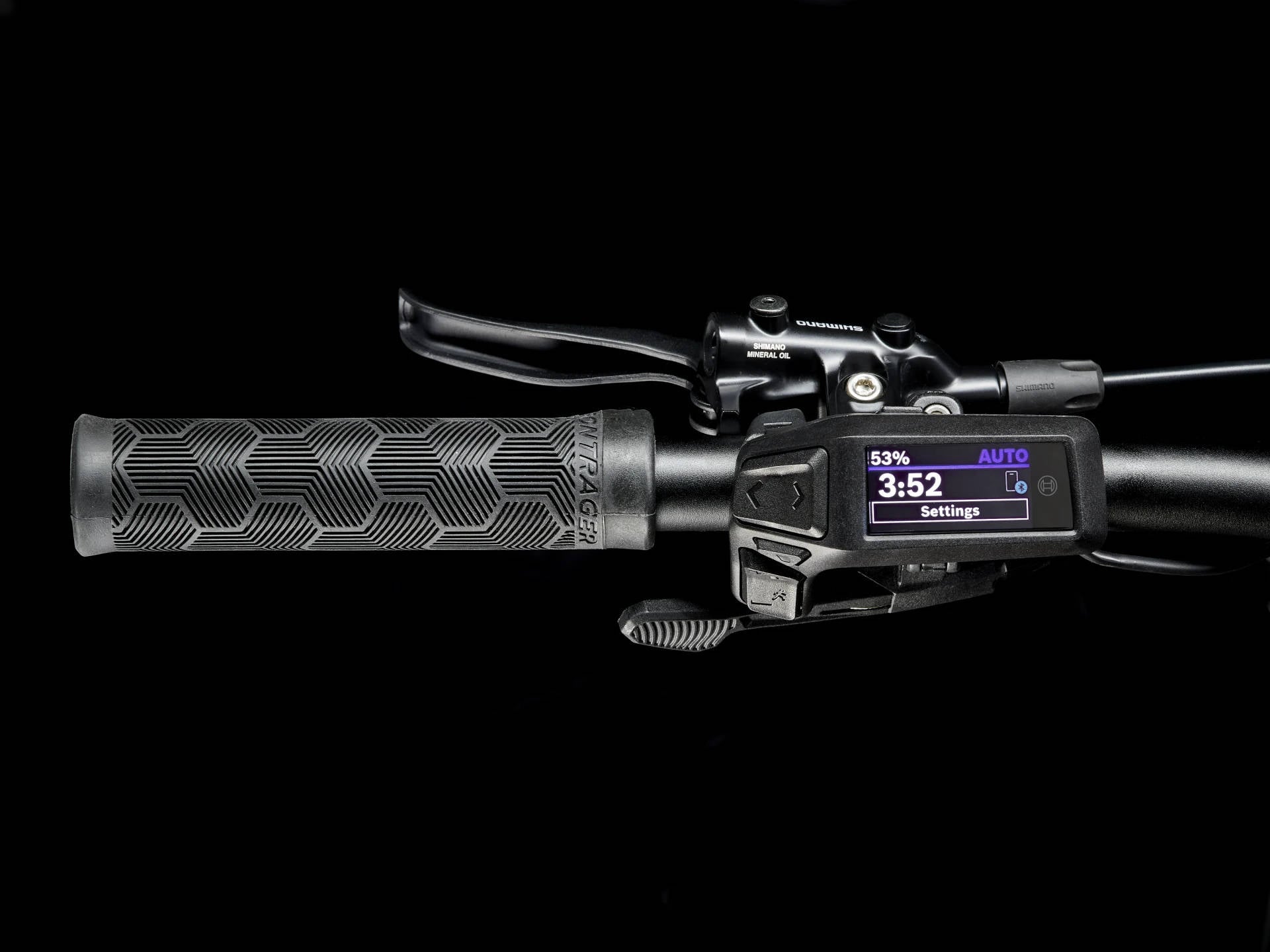

Effortless control is at your fingertips with the compact, full-colour handlebar controller. The built-in 2-in-1 remote and display provide all the control you need during your rides.
Safety is at the heart of this bike. High safety standards are met through UL certified e-systems, advanced battery management procedures and premium tier 1 supplier batteries.
Boost your ride duration and broaden your horizons with PowerMore, an add-on feature for the Marlin + 6. This booster battery extends your ride's duration, giving you more time to enjoy your supported ride.
The Shimano CUES is an answer to the call for enduring drivetrain longevity and peak performance. With Shimano's new LINKGLIDE technology, you're guaranteed a significant increase in the lifecycle of parts like the chain, cassette and chainrings. Ride more, worry less with the Marlin+ 6.
Click & Collect
For Click & Collect orders, for security you must present photo ID plus the payment card used at time of collection. This is also applicable when you have purchased using V12 Finance. For more information click HERE
Parts & Accessories
Place an order for £50 or more and delivery is free to mainland UK (including Highlands), for an order under £50 delivery is charged at £8.99.
For Highlands, Northern Ireland, Isle Or Man and other non mainland locations additional charges will apply. For parts and accessories we aim to despatch the next working day after the order is placed.
For hygiene and safety reasons, helmets cannot be returned or exchanged unless they are faulty. Please ensure you choose the correct size and style before purchasing.
Delivery With Multiple Items On Order
Please note if you order more than one item online your products may arrive in separate shipments. We do aim to send everything together but logistically this is sometimes just not feasible. For more information about delivery timescales please click HERE
Lead Times Electric Bikes
Before despatch, bikes are built, configured and tested by one of our experienced technical team.
We aim to despatch an in-stock bike 1-5 days after an order is placed (not including weekends / bank & public holidays). For bike located in a warehouse location we aim to dispatch within 10-12 days (not including weekends / bank & public holidays).
Please note the dispatch timescale shown in on our website / basket / order confirmation are estimated. If applicable Saturdays are included in the calculation however items are normally only dispatched Monday to Friday.
Bikes will be delivered by DX or TNT, please for some models the front wheel will be packed in a separate box but both wheel and bike should be delivered at the same time.
On all boxed deliveries the product name on the box may not match the model inside (our team sometimes have to use a different box than the one that initially came from the manufacturer) so please open the box to check!
Please note that Cube Stereo models are not supplied with pedals, browse our range HERE
Boxed Bike Delivery
Free boxed delivery requires basic assembly of your bike when it arrives. Generally the front wheel will need to be reattached, the bars will need to be turned plus pedals fitted.
Watch Our Video To Show How To Assemble Your Bike From The Box HERE
FREE boxed bike delivery Our Standard Boxed Delivery for bikes is FREE to UK mainland locations (excluding Highlands where there is an additional surcharge payable).
We can also deliver a bike to BT Northern Ireland and IM Isle Of Man subject to surcharges plus Orkney and Shetland Islands, please refer to the map below for our current prices, for other non mainland locations please contact us for a quote.
Ready2Ride Delivery
Choose our Ready2Ride Service and one of our team will deliver your new bike, fully built, configured and tested, we will personally hand over your new bike, make adjustments if required and can also wait while you take a short test ride round the block. If your postcode qualifies for this service it will be available to select at checkout. If your delivery address is outside our delivery area please contact our Customer Services team on 0117 452 6571
Ready2Ride Delivery For Cargo Bikes
From mid July 2024 we are now able to deliver a cargo bike in a box for FREE (to our regular FREE delivery areas - not Highlands etc)
Previously as our cargo bikes are larger than standard electric bikes they were only available for home delivery via our Ready2Ride delivery option (or click and collect), you can still select this option however if you prefer. One of our team will deliver your new bike, fully built, configured and tested, we will personally hand over your new bike, make adjustments if required and can also wait while you take a short test ride round the block.
This premium delivery is available to locations within a 50-75 miles radius of one of our stores. If your postcode qualifies for this service it will be available to select at checkout. If your delivery address is outside our delivery area please contact our Customer Services team on 0117 452 6571
We accept vouchers from Cyclescheme, Cycle2Work (also known as Halfords Cycle2Work), Bike2Work, Cycle Solutions, Caboodle, Dash, Green Commute Initiative, Gogeta, My Benefits World & Vivup.
Find out more on our Cycle to Work page HERE
If you need a quote, you can save your basket as a quote at the checkout, or get in touch by phone, email or via our Live Chat and one of our team will send you a quote by email.
CycleScheme vouchers can be used when purchasing online, select ‘payment’ option in checkout and provide your voucher number and redemption code. Our team will then be in contact and will process your voucher.
To purchase a bike via Cycle2Work, Bike2Work, Cycle Solutions, Caboodle, Dash Rides, Green Commute Initiative, Gogeta, My Benefits World & Vivup please contact our Customer Services Team on 0117 452 6571 and we will process your order manually.
Service Plans are available on all bikes purchased in store and online within 60 days of purchase and a great way to save money on future services.
Your Service Plan is non-refundable, non-transferable and is registered to you and your bike (frame number required)
To ensure that we never let our you down, we proactively monitor competitor prices and adjust our own prices every week.
However, if you do find a product online for less than the price offered on our website or in store, please get in touch and we may be able to match it, as long as it matches the criteria below.
If you want to request a price match from us, simply contact our customer service team on 0117 452 6571 or contact us via our live chat.
| Motor | Bosch Active Line Plus, 50Nm |
|---|---|
| Battery | Bosch CompactTube 400Wh |
| Computer | Bosch Purion 200 |
| Charger | Bosch standard 2A, 230V, smart system |
| Frame | Size: XS Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12mm thru axle |
| Size: S , M , L , XL Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12mm thru axle |
|
| Fork | Size: XS SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15 mm thru axle, 100mm travel |
| Size: S , M , L , XL SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15 mm thru axle, 120mm travel |
|
| Max compatible fork travel | See service manual |
| Hub front | Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15mm thru axle |
| Hub rear | Formula CL-3248, alloy, CentreLock, Shimano 8/9/10 freehub, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve |
| Tyre | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" |
| Size: M , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" |
|
| Max tyre size | Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer |
| Shifter | Shimano U4000, 9-speed |

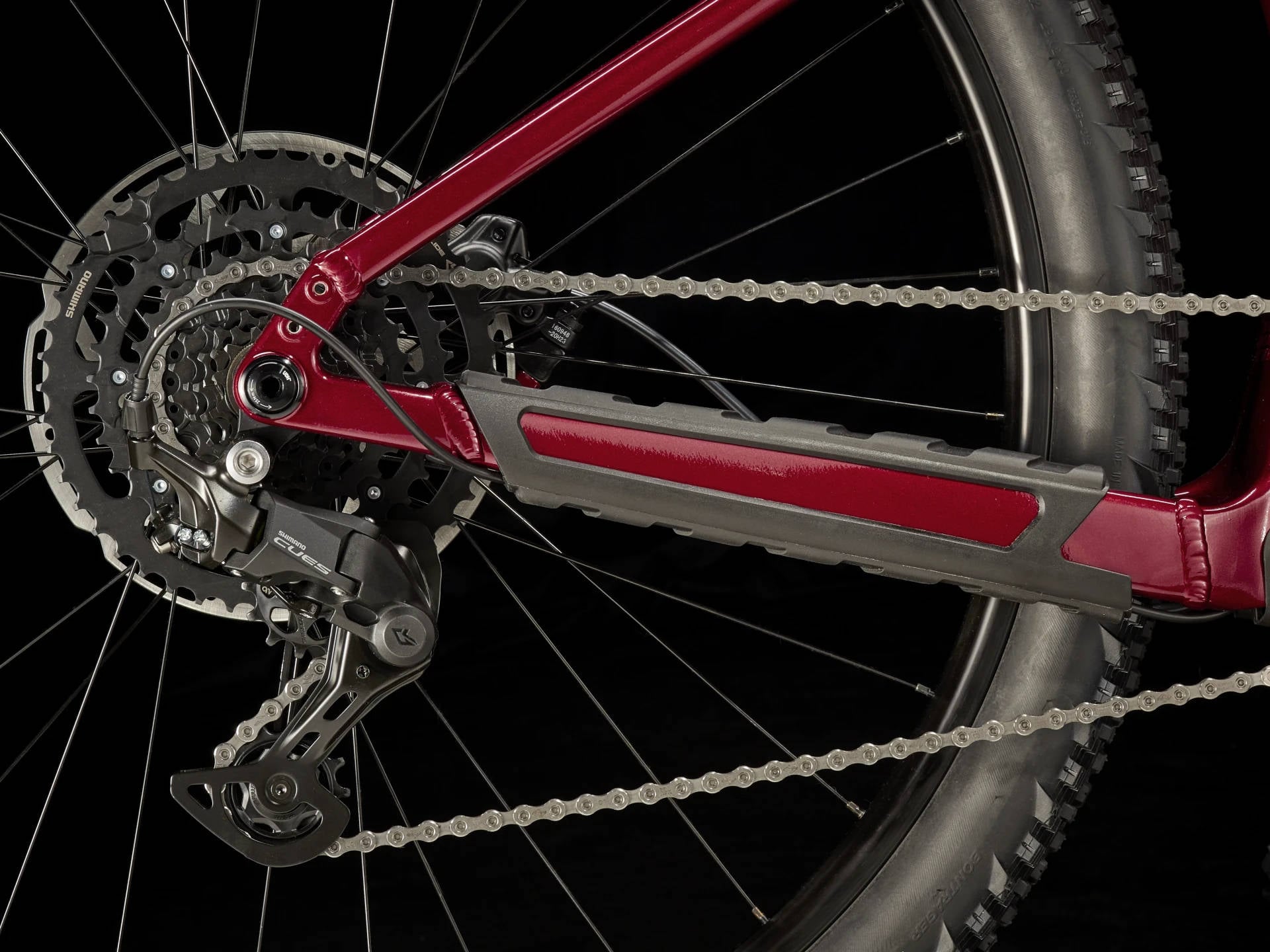

| Rear derailleur | Shimano CUES U4000 |
| Crank | FSA CK-220, 165mm length |
| Chainring | FSA, 32T, steel |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 36T, min 32T |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Seatpost | Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
| Size: L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| Handlebar | Size: XS , S Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
| Size: M , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| Stem | Size: XS , S Bontrager Comp, 31.8mm, 7-degree, 35mm length |
| Size: M , L Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 50mm length |
|
| Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 60mm length |
|
| Head set | Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom |
| Brake rotor | Tektro, CentreLock, 203mm |
| Brake Set | Tektro HD-M275 hydraulic disc |
| Rotor size | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| Weight | M - 22.45 kg / 49.5 lb (with tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Colours | Crimson |
| Sizes | Large, Medium, Small, X-Large, X-Small |
| Brand | Trek |
| Model Year | 2025 |
| Barcodes | 601479132522, 601479132607, 601479132621, 601479132645, 601479132782 |
| SKUs / Part Numbers | 5294474, 5294475, 5294476, 5294477, 5294478 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
